HDMI (1.3)
High-Definition marketplace.
HDMI 1.3 will include the following new
features:
Higher speed: HDMI 1.3 increases its
single-link bandwidth from 165MHz (4.95
gigabits per second) to 340 MHz (10.2
Gbps) to support the demands of future
high definition display devices, such as
higher resolutions, Deep Color™ and
high frame rates. In addition, built into
the HDMI 1.3 specification is the
technical foundation that will let future
versions of HDMI reach significantly
higher speeds.
Deep Color™: HDMI 1.3 supports 30-bit,
36-bit and 48-bit (RGB or YCbCr) color
depths, up from the 24-bit depths in
previous versions of the HDMI
specification.
Lets HDTVs and other displays go from
million of colors to billions of colors.
Eliminates on-screen color banding, for
smooth tonal transitions and subtle
gradations between colors.
Enables increased contrast ratio
Can represent many times more shades
of gray between black and white
At 30-bit pixel depth, a four times
improvement would be the minimum,
and the typical improvement would be
eight times or more.
Broader color space: HDMI 1.3 removes
all limits on color selection
Next-generation “xvYCC” color space
supports 1.8 times as many colors as
existing HDTV signals
Lets HDTVs display colors more
accurately
Enables displays with natural, vivid colors
New mini connector: With small portable
devices such as HD camcorders and
still cameras demanding seamless
connectivity to HDTVs, HDMI 1.3 offers a
new, smaller form factor connector
option.
Lip Sync: Because consumer electronics
devices are using increasingly complex
digital signal processing to enhance the
clarity and detail of the content,
synchronization of video and audio in
user devices has become a greater
challenge and could potentially require
complex end-user adjustments. HDMI
1.3 incorporates an automatic
video/audio synching capability that
allows devices to perform this
synchronization automatically with total
accuracy.
New lossless audio formats: In addition
to HDMI’s current ability to support high-
bandwidth uncompressed digital audio
and all currently-available compressed
formats (such as Dolby Digital and DTS),
HDMI 1.3 adds additional support for
new, lossless compressed digital audio
formats Dolby TrueHD and DTS-HD.
High-Definition marketplace.
HDMI 1.3 will include the following new
features:
Higher speed: HDMI 1.3 increases its
single-link bandwidth from 165MHz (4.95
gigabits per second) to 340 MHz (10.2
Gbps) to support the demands of future
high definition display devices, such as
higher resolutions, Deep Color™ and
high frame rates. In addition, built into
the HDMI 1.3 specification is the
technical foundation that will let future
versions of HDMI reach significantly
higher speeds.
Deep Color™: HDMI 1.3 supports 30-bit,
36-bit and 48-bit (RGB or YCbCr) color
depths, up from the 24-bit depths in
previous versions of the HDMI
specification.
Lets HDTVs and other displays go from
million of colors to billions of colors.
Eliminates on-screen color banding, for
smooth tonal transitions and subtle
gradations between colors.
Enables increased contrast ratio
Can represent many times more shades
of gray between black and white
At 30-bit pixel depth, a four times
improvement would be the minimum,
and the typical improvement would be
eight times or more.
Broader color space: HDMI 1.3 removes
all limits on color selection
Next-generation “xvYCC” color space
supports 1.8 times as many colors as
existing HDTV signals
Lets HDTVs display colors more
accurately
Enables displays with natural, vivid colors
New mini connector: With small portable
devices such as HD camcorders and
still cameras demanding seamless
connectivity to HDTVs, HDMI 1.3 offers a
new, smaller form factor connector
option.
Lip Sync: Because consumer electronics
devices are using increasingly complex
digital signal processing to enhance the
clarity and detail of the content,
synchronization of video and audio in
user devices has become a greater
challenge and could potentially require
complex end-user adjustments. HDMI
1.3 incorporates an automatic
video/audio synching capability that
allows devices to perform this
synchronization automatically with total
accuracy.
New lossless audio formats: In addition
to HDMI’s current ability to support high-
bandwidth uncompressed digital audio
and all currently-available compressed
formats (such as Dolby Digital and DTS),
HDMI 1.3 adds additional support for
new, lossless compressed digital audio
formats Dolby TrueHD and DTS-HD.
| Elite HDMI™ |

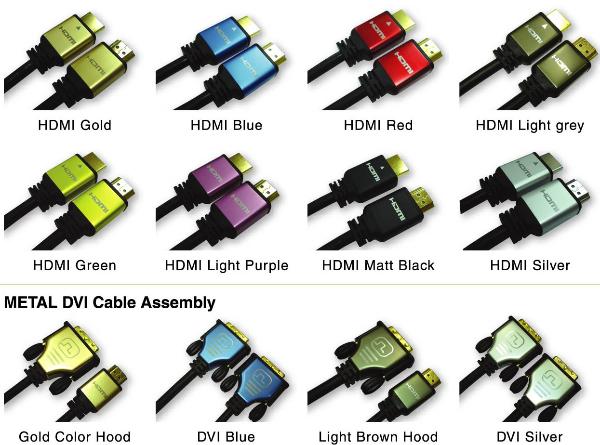

Colors & Lengths
